Alpine Maple Assembly Pics Standard 15" Base |
|
|
|
|

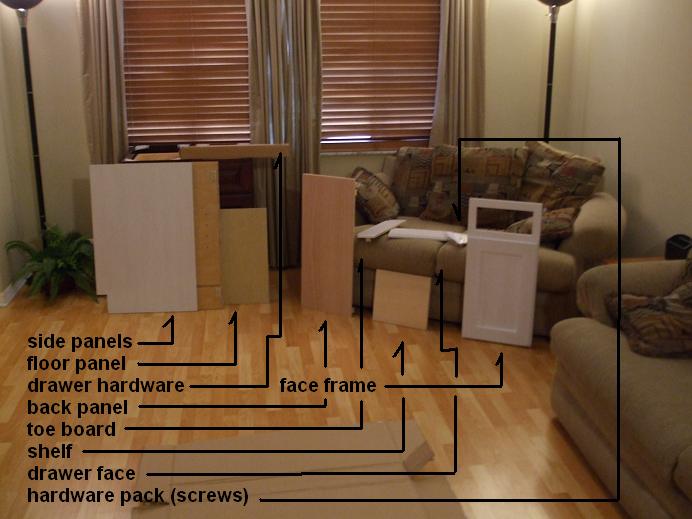

You should ID all the parts before starting |
|
 |

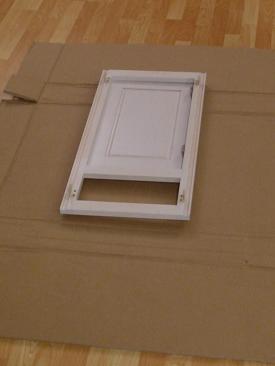

Face frame goes face down on soft surface (to protect from scratches) |
|

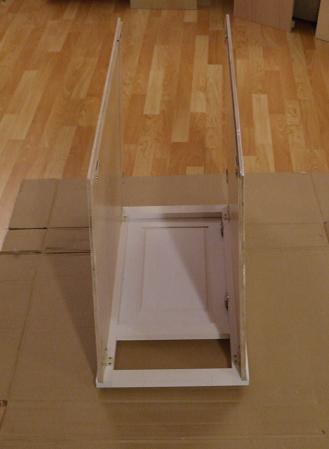

Side panels snap into face frame |
 |
|
|
insert locking screw into all metal "L" brackets after they have been snapped into place. |
|

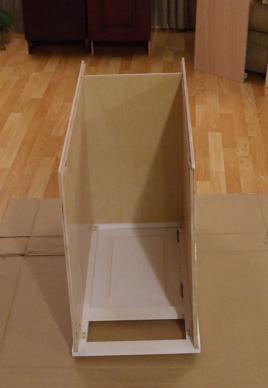

slide floor panel into side panel grooves
|
|
|
|

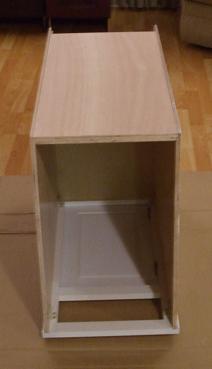

snap in and lock back panel
set shelf clips and shelf |
|
attach drawer head to drawer box ... use the predrilled holes
|
 |
|
|
insert and screw in the drawer guide back brackets (pre drilled holes in back panel) |
|
slide drawer guide into back bracket |
|
|
|
use beveled head screws to attach front of drawer guide to face frame (see pre drilled holes) |
|

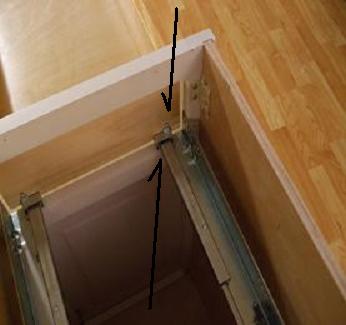

note how drawer box attaches to drawer guides steel hook on drawer guide goes into the pre drilled holes in the back of the drawer box
|
|
|
steel pin on each drawer guide snaps into the predrilled hole in the bottom edge of the drawer box side
|
|
|
screw on counter top brackets |
|
|
|
attach quiet pads |
|
Doors are pre hung on face frames - alpine drawer box shipped separately (preassembled) - base cabinets should take about 15 minutes to assemble, wall cabinets go a little quicker. |
Questions? call GRANGER DAVIS 386-761-4946 |
